How to recharge silica gel in the oven



Recharging silica gel is closer to drying herbs than to chemistry: low heat, patience, and one or two details that make the difference between gel that comes back fully and gel that comes back half-hearted. Here is the whole procedure, including the two steps most guides skip.

The method, step by step

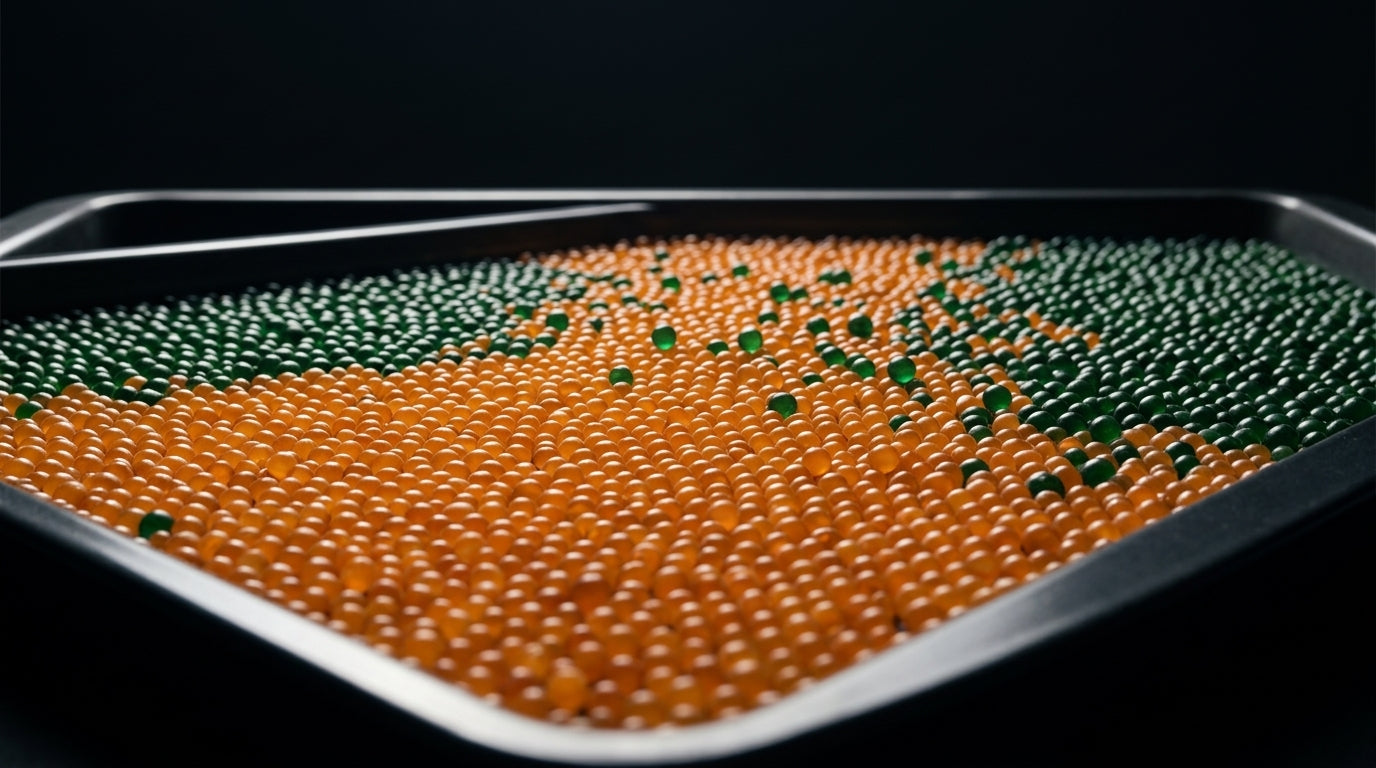

• 1. Spread it thin. Loose beads go in a single layer on a rimmed baking tray; a mesh or fabric pouch lies flat. Thick piles dry from the outside in and can take many hours.
• 2. Set 120 C, ordinary bake. Put the tray in and leave the oven door cracked open a finger's width.
• 3. Wait two to three hours. Lightly loaded gel can finish in an hour; a fully green pouch wants the full session. Stirring loose beads every half hour speeds things up.
• 4. Read the colour. Done means orange throughout, not just on top.
• 5. Cool it covered. Switch the oven off and let the gel cool inside it, or under a loose cover on the bench.
• 6. Seal it once cool. Room-temperature gel goes straight into the box it protects or an airtight jar.

Why 120 degrees

The temperature is boxed in from both sides. Below roughly 100 C the water clings to the pore walls and drying drags on for most of a day; above the sweet spot, things start dying in a fixed order. The dye in indicating gel goes first, around 125 C, one hot session and the colour reporting is gone for good. The gel itself suffers from about 150 C, and by 200 C the internal pore structure that does all the work is being wrecked. 120 C clears the slow zone with margin below every damage line, which is why it is the figure on nearly every spec sheet.

Pouch in whole, or beads out?

How to know it is done

Indicating gel grades its own homework: done is orange all the way through, and a pouch still murky in the middle wants another hour. For plain white gel, the scale replaces the colour: weigh the tray every half hour and stop when the weight stops falling. And there is a charming low-tech check for loose beads: fully dry silica clicks, hard and glassy, when stirred, while damp beads sound dull. If the colour will not come back at all after a full session, the pouch is telling you something else, covered in how long silica gel lasts.

The cooling step everyone skips

Hot silica gel is at its hungriest the moment it leaves the oven, and it will feed on the first air it meets. Seal it hot and the trapped warm air condenses inside the container as it cools, handing back some of the water you just spent two hours removing; leave it open on the bench and it drinks the kitchen's humidity directly. The move is to cool it protected but not sealed, in the switched-off oven as it cools down, or under a loose cover, and only close the airtight lid at room temperature. Half an hour of patience protects three hours of work.

Fan ovens and gentler settings

A fan oven is an upgrade for this job: the moving air carries moisture away and cuts drying time by roughly a quarter to a third at the same temperature, with the venting handled for you. In the other direction, a long gentle session, six to seven hours at 60 C, does the same work while barely stressing the gel, and since heat is what ages silica over its lifetime, the slow setting is the one that maximises how many cycles a pouch survives. Air fryers and dehydrators sit in the same family, small convection ovens, and work if their thermostat genuinely holds a low setting; the risk is cheap units overshooting past the 125 C dye limit.

Frequently asked questions

What oven temperature for drying silica gel?

120 C, ordinary bake, is the standard figure: hot enough to empty the beads in two to three hours, with margin under the 125 C limit where indicating dye is destroyed. A gentler 60 C for six to seven hours also works and stresses the gel least. Never exceed about 150 C.

How long should silica gel stay in the oven?

Two to three hours at 120 C for a thin layer or a flat pouch; lightly loaded gel can finish in an hour, and thick piles take much longer. Stop when the colour is orange throughout, or for plain gel, when the weight stops dropping between checks.

Can I put the whole silica gel pouch in the oven?

Fabric, mesh and paper packets go in whole at 120 C, laid flat. Tyvek and plastic-film packets do not; Tyvek melts around 121 to 127 C and polyethylene from about 90 C, so empty those beads into a heat-safe dish first. Blue cobalt gel should not go in a food oven at all.

How do I know when silica gel is fully recharged?

Indicating gel is done when it is orange all the way through, not just on the surface. Plain gel is done when its weight stops falling between checks, and fully dry loose beads make a hard clicking sound when stirred.

Should silica gel cool before I seal it up?

Yes. Sealed hot, the warm trapped air condenses in the container and re-wets the gel; left open, hot gel pulls moisture straight from room air. Cool it in the switched-off oven or under a loose cover, then seal it airtight once it reaches room temperature.

Is a fan oven better for drying silica gel?

Slightly, yes: the moving air removes the released moisture and cuts drying time by roughly 25 to 30 percent at the same temperature. In a conventional oven, crack the door open a finger's width so the vapour can escape instead of resettling on the gel.

The short version

Thin layer, 120 C, door cracked, two to three hours, orange means done, cool before sealing. The temperature ladder explains every rule at once: plastic packets die at 90, the dye at 125, the gel from 150, so 120 is the fast setting and 60-for-longer the gentle one. The two details that separate a good recharge from a half one are letting the moisture out of the oven and letting the gel cool before it is sealed.
